EQUIPMAN is the software solution for managing all the equipment related activities in the project.

All detailed activities like Equipment Ordering, Vendor Expedition, Equipment Receipt at Site, Equipment Inspection, Equipment Transportation, Equipment Lifting Analysis Approval Documentation, Equipment Lifting, Equipment Erection, Equipment Alignment & Grouting, Equipment Internal Cleaning, Equipment Surface Preparation and Protective Coating, Equipment Insulation, Equipment Pre-commissioning, Equipment Startup, Equipment Final Completion, Equipment Billing based on Approved schedule of Rates(SOR), Sub-Activity Completion Breakup are managed through the EQUIPMAN.
Equipment Master List input data is auto-generated from P&ID containing Equipment Tag numbers, Equipment weight, Orientation, Equipment size, connected piping lines information etc. are used for monitoring & managing activities.
List of Equipment nozzles, Nozzle connected pipelines, Equipment nozzle connected piping spools etc. are interlinked for opening piping erection front based on Equipment Erection. Total number of Equipment to be erected, total Scope of Erection work in Tonnage, Completed work, Balance Scope for erection are monitored efficiently. Equipment Erection / Installation Status /
Documented Proofs right from receipt, Inspection, Clearance, Transportation, Erection, Alignment & Grouting, Painting & Insulation, Pre-commissioning till Startup is maintained in the software for records and Operation & Maintenance (O&M) in future.
Integration with 3D Model for Equipment position & location review to aid in erection planning. EQUIPMAN is also used for Planning &Monitoring of Equipment Erection Scheduling, delay analysis, rescheduling, delay impact analysis of dependent disciplines like Piping, Instrumentation etc.

EQUIPMAN is the web-based software module used to monitor & control the progress of all types of equipments in the project.

Static Equipments
(Pressure Vessels, Columns, HeatExchangers, Drumsetc.)

Rotary Equipments
(Pumps, Compressorsetc.)

Packaged Equipments
(Gas turbine generator packages, air compressor package, air-blower package, incinerator package, hydrogen-compressor package etc.)

Furnace/Heaters
(decomposition furnace package etc.)

Auxiliary Items of Packages
(Burners, Cooler, Fan, Compressor)

Summary Reports (MT & Nos)

Overall Progress percentage of EQUIPMENT based on weight age values

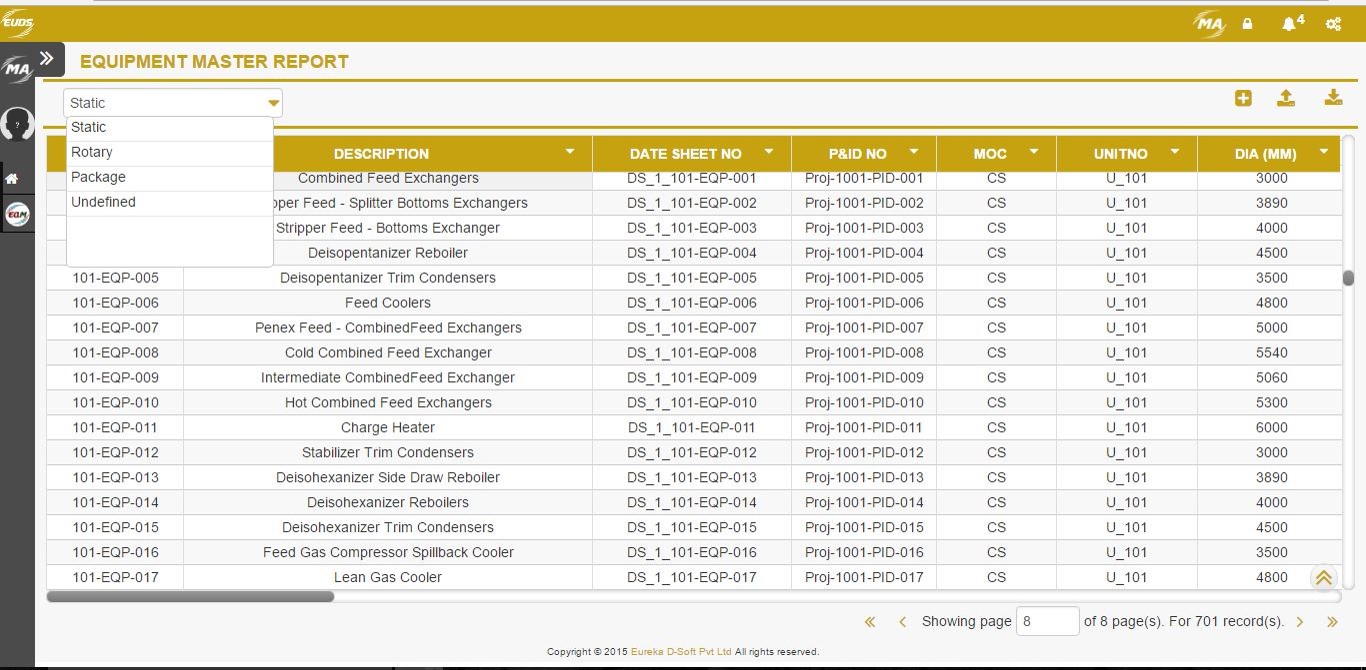

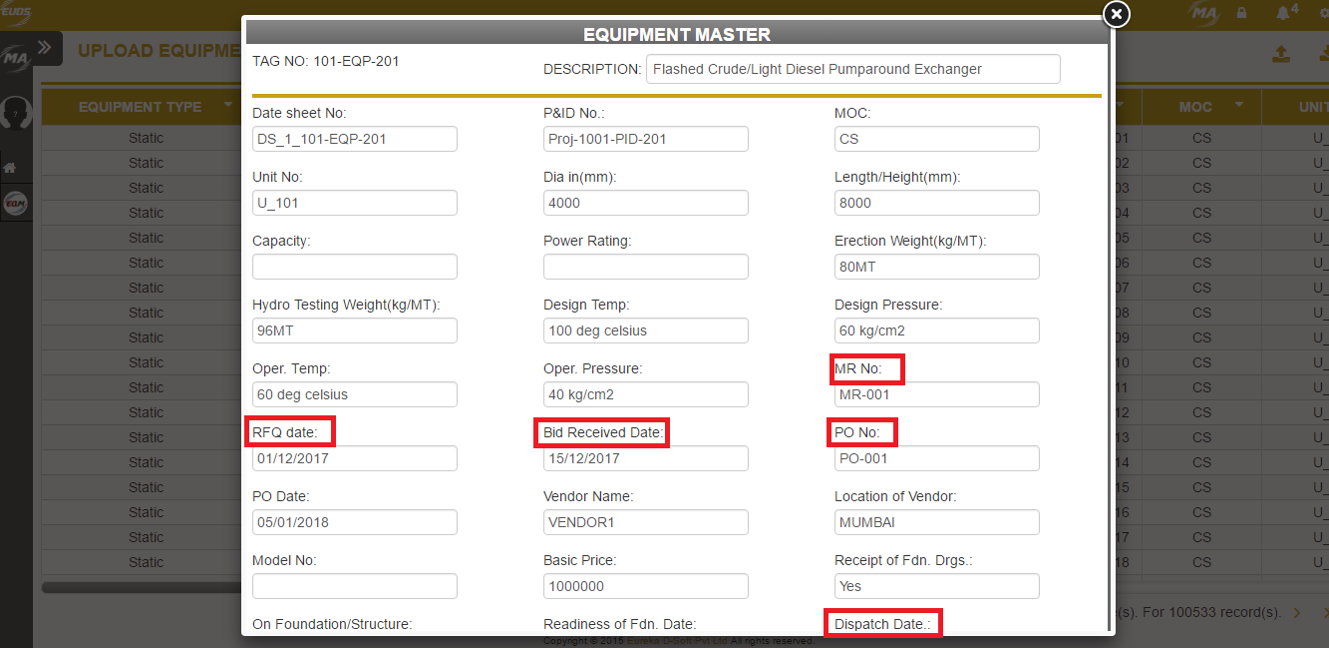

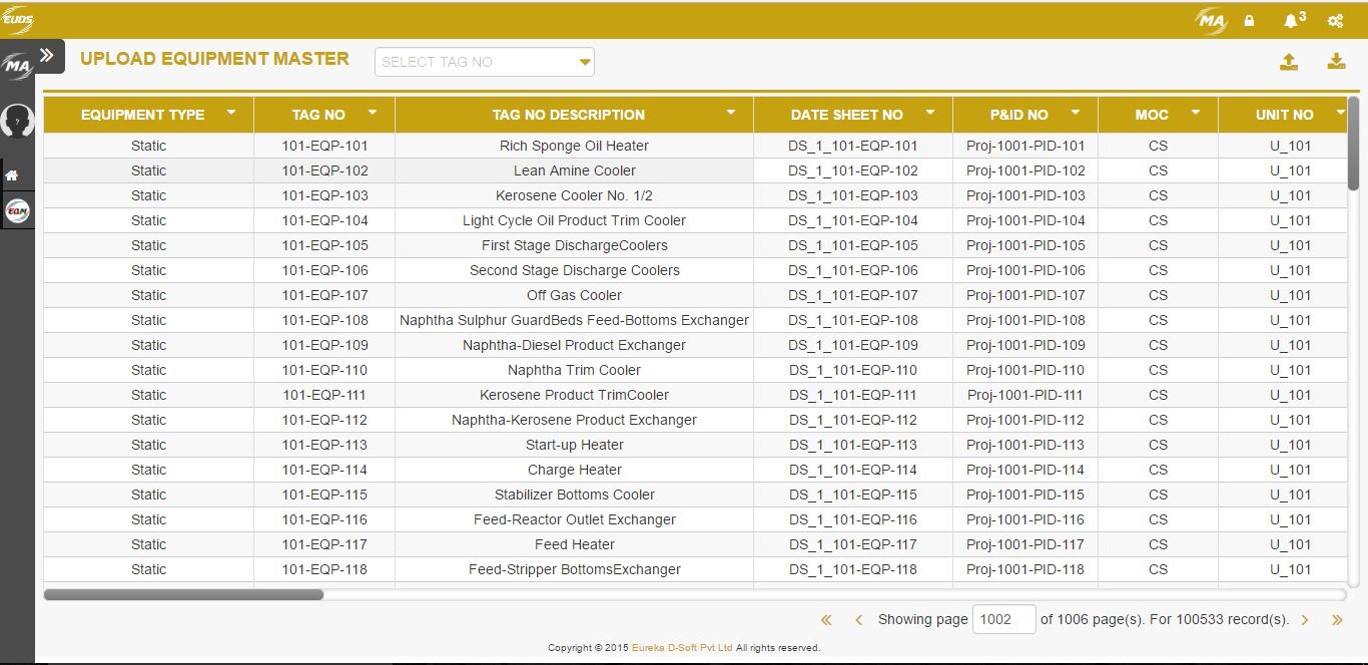

Equipment Master – Static/Rotary/Packaged

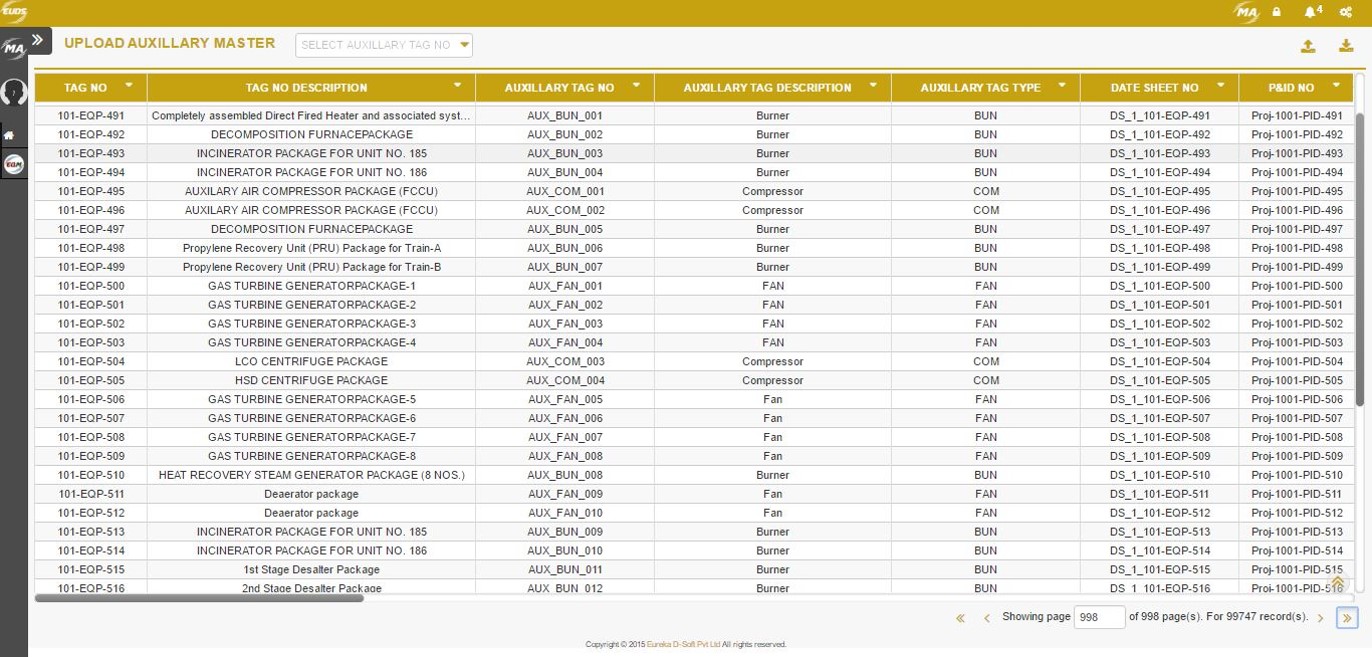

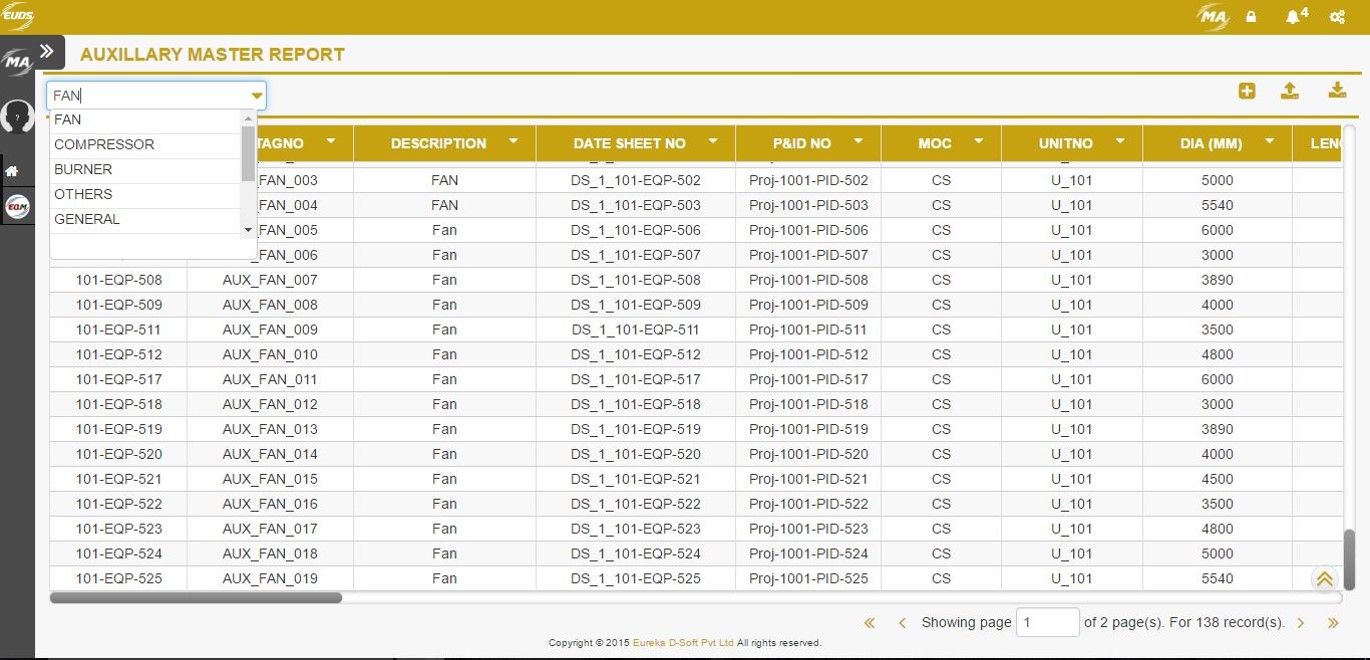

Auxiliary Equipment Master Data

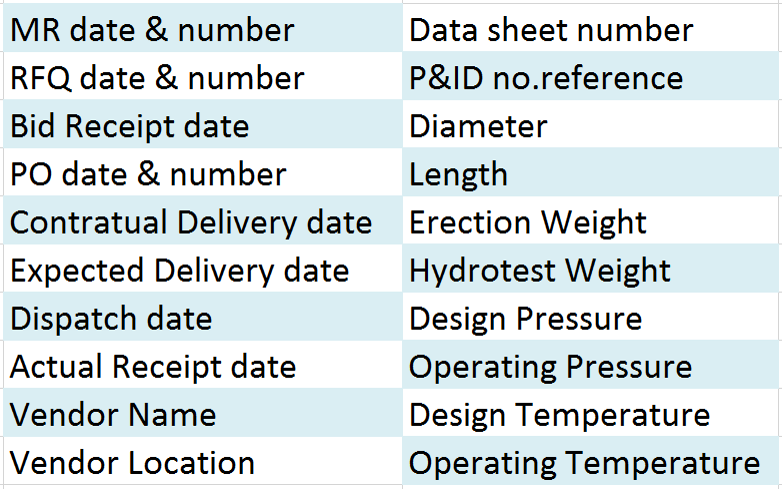

Equipment Procurement & Technical Parameters

Monitoring of Procurement/Technical Parameters

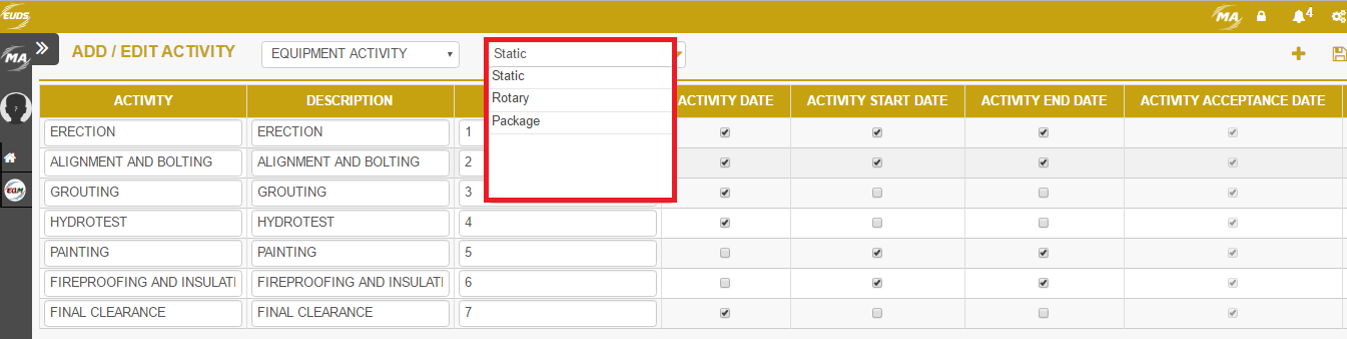

Activity

  • Activity heads for monitoring progress can be defined/configured specific to
    STATIC Equipments – progress activities can be configured
    ROTARY Equipments – progress activities
    PACKAGE Equipments – progress activities

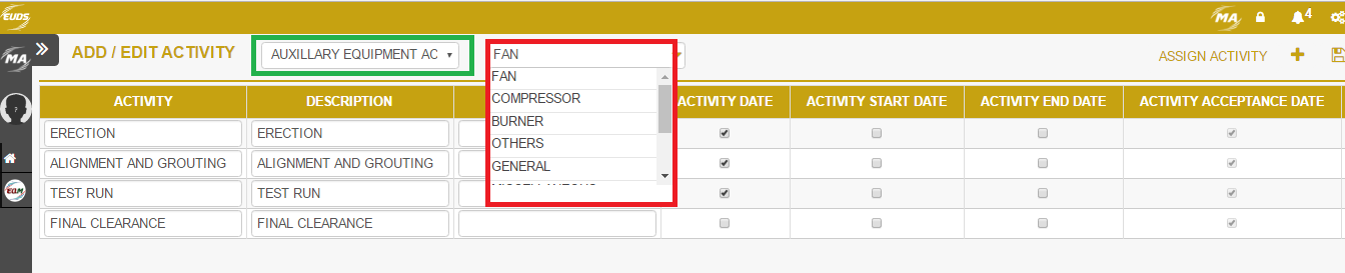

  • Separate progress activities for various Auxiliary items can be defined/configured specifically to Auxiliary item types like
    Fan
    Burners
    Compressors etc.
  • Progress weight age Percentage can be assigned for each activity to monitor the overall progress.

Progress & Reporting of Equipments

Progress & Reporting of Auxiliary Equipments

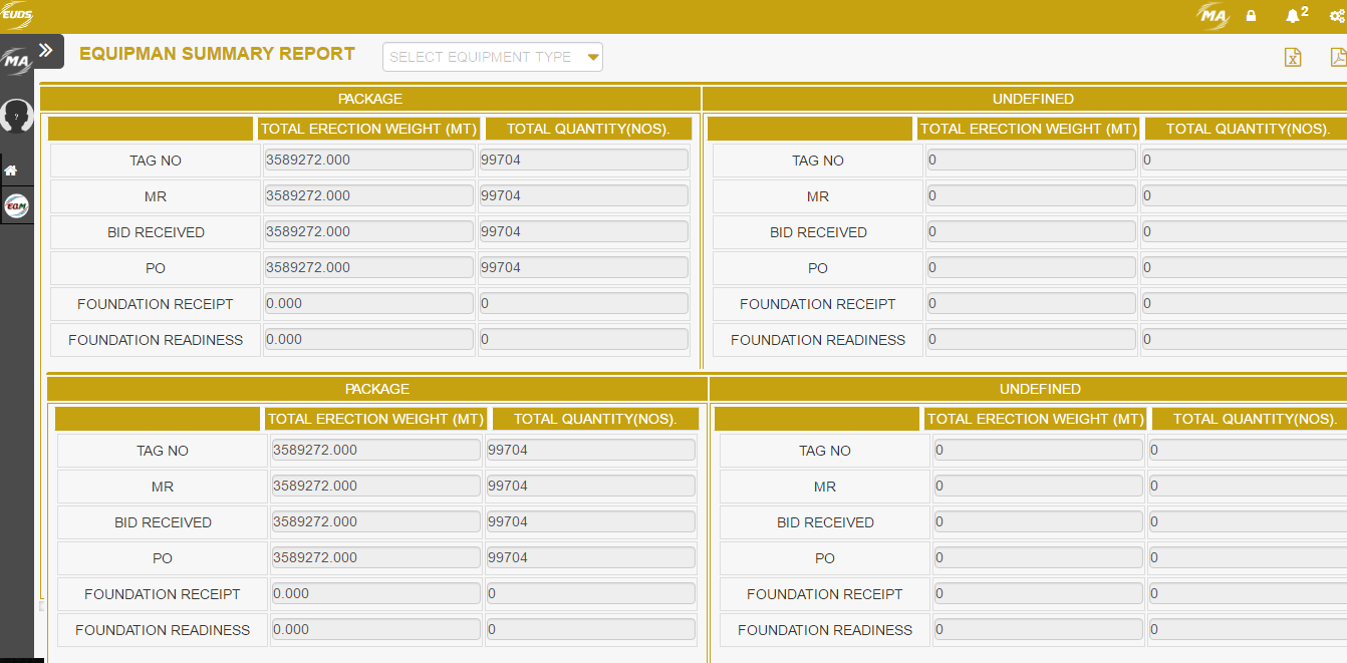

Equipment – Summary Report

Auxiliary Equipments Summary Report(MT/NOS)

ENIMAN is used for managing all the electrical & instrumentation related activities in the construction project

Instrument Master List data is auto-generated from P&ID containing information against Instrument tags is used for scheduling & monitoring the Installation activities of all tagged Instruments.
Instruments Installation reports creation & documentation of the reports are managed for final dossier creation. Electrical Items Installation, Earthing Lugs Installation, Cabling activities can also be managed with this solution.

Item Codification:
Every Company is interested in maintaining its own item code for all items of various disciplines like Piping, Structural, Civil, Electrical, Instrumentation, HVAC, HSE, Miscellaneous etc. The company needs to standardize its own item code for all items of various disciplines like Piping, Structural, Civil, Electrical, Instrumentation, HVAC, HSE, Miscellaneous etc. to have better control on the Overall project, Purchase of material, Inventory management, Material management & reconciliation. Also, Standardization of item code helps in managing major projects with multi-item code environment, where Owners item code, Engineering item code, PMC item code & Contractors item code demands inter-relationship for inventory management (Free Issue & Non-Free Issue material), Construction management & final material reconciliation. EPCPROMAN provides item codification module which helps in creating item code automatically as per the Codification rules. Based on Pre-defined Codification rules, systematic standardized item code can be generated for all items of various disciplines like Piping, Structural, Civil, Electrical, Instrumentation, HVAC, HSE, Miscellaneous etc. Automatic correlation between Engineering Item code with equivalent Master Item code (Owner Code / PMC code / Contractor code) can be established and one-by-one mapping item code can be done. Similarly, an Automatic correlation between various codes (Owner Code / PMC code/ Engineering code etc.) with equivalent Master Code can be mapped based on Dictionaries & Parameter to Parameter mapping like ITEM TYPE, SUB-TYPE, NOMINAL SIZE, CATEGORY, SCHEDULE, THICKNESS, RATING, END CONDITION, FACING etc. Item Descriptions can be automatically broken into a number of attribute parameters which can also be correlated with dictionary for item code mapping.
